| Item |
Part Number |
Description |
|
|
| FIAT SPIDER PISTON SETS | ||||
| 2 | 5880514 | PISTON SET-STD +.2 1968-70 1438cc | INQUIRE | |
| 4196660 | PISTON SET-STD 1970-1973 1608cc | $345.00 | ||
| 5880517 | SET OF PISTONS .8 1970-1973 1608cc | $345.00 | ||
| 5880586 | PISTON SET-STD 1973 1592cc ONLY | $345.00 | ||
| 5881423 | PISTON SET- STD 1974-1985 1756/1995CC | $335.00 | ||
| 5881424 | PISTON SET-.4 O/S 1974-1985 1756/1995CC | $345.00 | ||
| 5881425 | PISTON SET-.6 O/S 1974-1985 1756/1995CC | $345.00 | ||
| FIAT SPIDER PISTON RING SETS | ||||
| 3 | 1900501 | PISTON RING SET-STD 1438-1592CC 1968-73 | $48.80 |
 |
| 5880366 | PISTON RING SET-STD 1756-1995CC 1974-85 | $62.40 |
|
|
| CONNECTING ROD | ||||
| 4 | 4343780 | CONNECTING ROD-1973-1978 | $99.20 | |
| 4 | 7547943 | CONNECTING ROD-1979-1985 | $122.47 | |
| 7 | 4264161 | SMALL END BUSHING 1968-1978 | $8.90 | |
| 7 | 7540151 | SMALL END BUSHING 1979-1985 | $8.90 | |
| FIAT SPIDER CONNECTING ROD BEARINGS | ||||

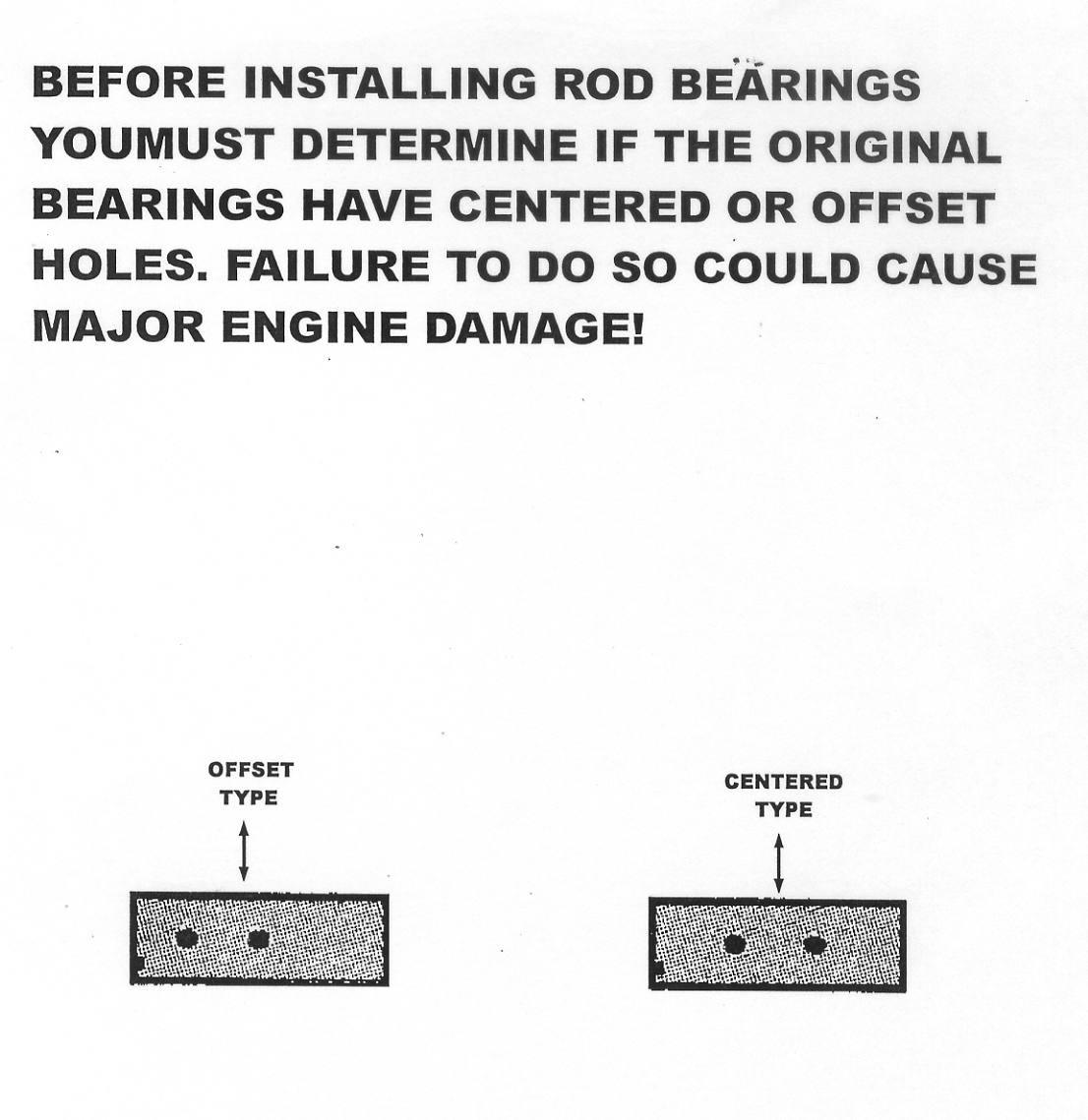

| CENTERED | VERSUS OFFSET HOLES-SEE BELOW | |||
| 8 | 7597964 | ROD BEARING SET-STD 1968-1971 1438CC | $28.80 | |
| 8 | 7597966 | ROD BEARING SET-.010/.025 1968-1971-1438CC | $28.80 | |
| 8 | 7597967 | ROD BEARING SET-.020/.050 1968-1971-1438CC | $28.80 | |
| 8 | 4150974 | ROD BEARING SET-.030/.076 1968-1971-1438CC | $28.80 | |
| 8 | 4225645 | ROD BEARING SET-STD 1971-1973 1608cc | $34.75 | |
| 8 | 4225647 | ROD BEARING SET-.25 1971-1973 1608cc | $34.75 | |
| 8 | 5951685 | ROD BEARING SET-STD 1973-1977 1592/1756CC OFFSET OIL HOLES-STD | $29.90 | |
| 8 | 4238570 | ROD BEARING SET-.010 1973-1977 1592/1756CC- OFFSET OIL HOLES-.010/.25 OS | $29.90 | |
| 8 | 5951741 | ROD BEARING SET-STD 1976-1985 1756/1995CC CENTERED OIL HOLES - STD | $32.90 |
|
| 8 | 5951743 | ROD BEARING SET-.25 1974-1985 1756/1995CC- CENTERED OIL HOLES-.010/.25 OS | $32.90 |
|
| 9 | 4111012 | PISTON PIN KEEPER | $3.06 | |
| THE | FIRST OVERSIZE ON BEARINGS WHEN | |||
| TURNING | THE CRANKSHAFT IS .010/.25THS | |||
| FURTHER | OVERSIZE BEARINGS ARE AVAILABLE |
.020. 030. 040 |
