| ITEM # |
Part Number |
Description |
Price |
|
|
| FIAT SPIDER CARBURETOR PARTS | |||||
| R&R | people | do not | return | old | carbs |
| so | you will | have to send | your carb | in to be | rebuilt |
| 1 | 4226588R | REBUILT CARBURETOR 1968-71 28/34 DHSA 1438CC |
 |
$285.00 | R&R |

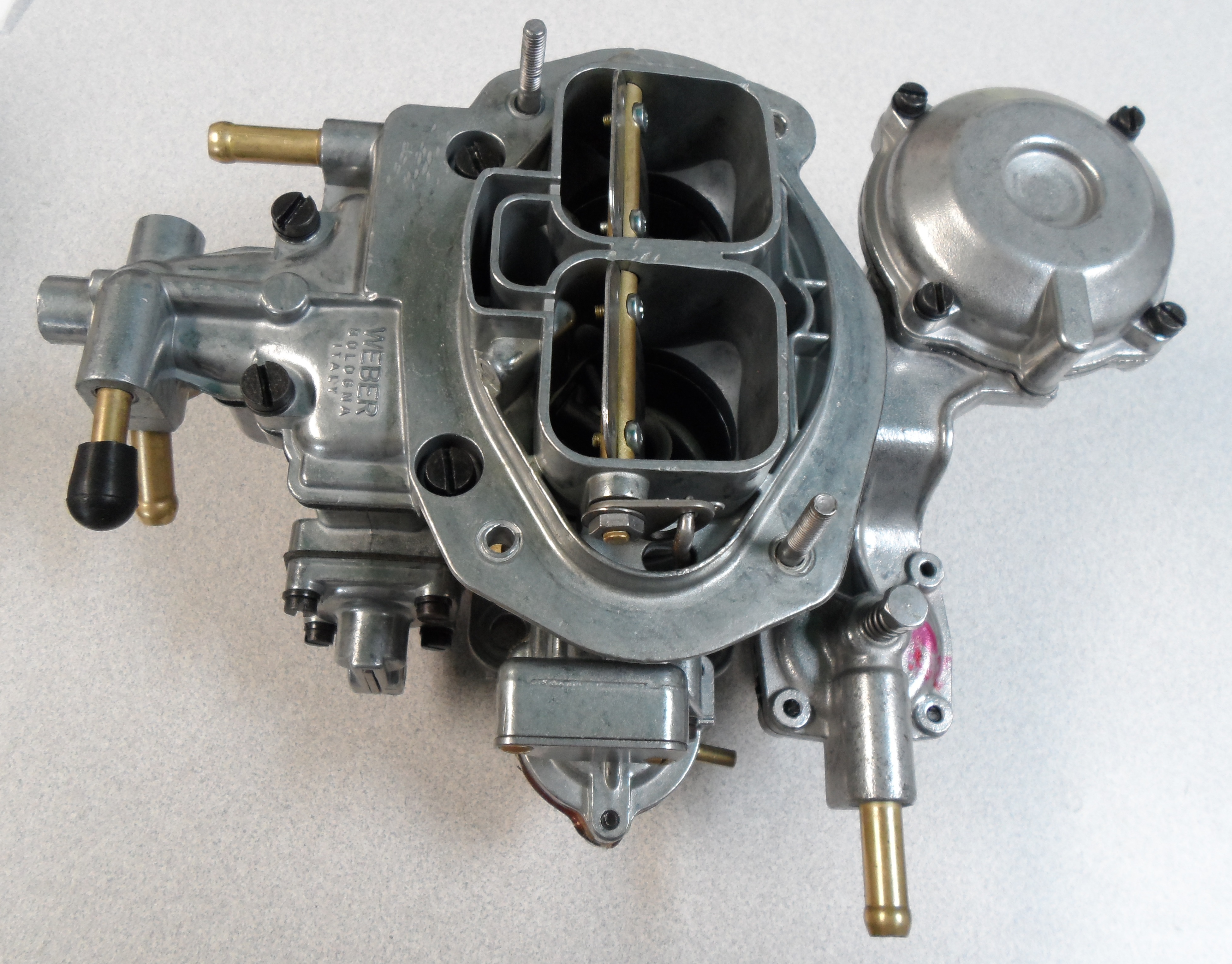

| * | 4240110R | FIAT SPIDER REBUILT CARBURETOR 1971-73 28/36 DHSA 1608CC |
|
$285.00 | R&R |
| * | 4304462R | FIAT SPIDER REBUILT CARBURETOR 1973 1592CC |
|
$285.00 | R&R |
| * | 7525 | CORE CHARGE-REBUILT CARB | $55.00 |
 |
|

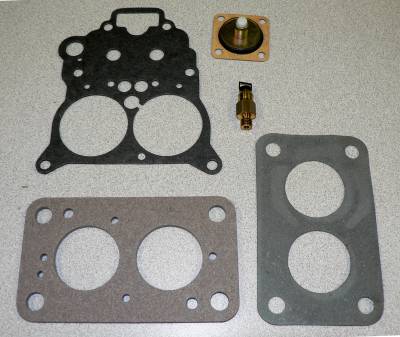

| 2 | 9921306 | FIAT SPIDER CARB REPAIR KIT |
 |
$34.68 |
|
| 3 | 9931307 | MAJOR CARB KIT | INQUIRE | ||
| 4 | 12574211 | LOCKNUT | $1.55 | ||
| 5 | 4168202 | SPACER | $11.80 | ||
| 6 | 4130313 | ISOLATOR | $14.58 | ||
| 7 | 16100811 | NUT | $1.80 | ||
| 8 | 11193874 | LOCKWASHER | $1.48 | ||

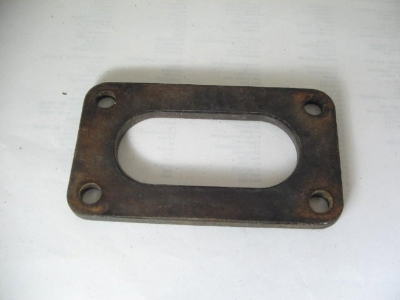

| 8 | 4175021 | THICK BASE PLATE GASKET |
 |
$14.58 |
|
| 4304749 | THIN GASKET-EITHER SIDE OF 4175021 | $7.14 | |||
| 9 | 13517035 | STUD | $2.35 | ||
| 10 | 9909525 | STUD | $8.06 |
|
|
| 11 | 9909697 | NUT | $1.88 | ||
| 12 | 9911674 | LOCK TAB | $1.56 | ||
| 13 | 9915261 | PLATE | $1.50 | ||

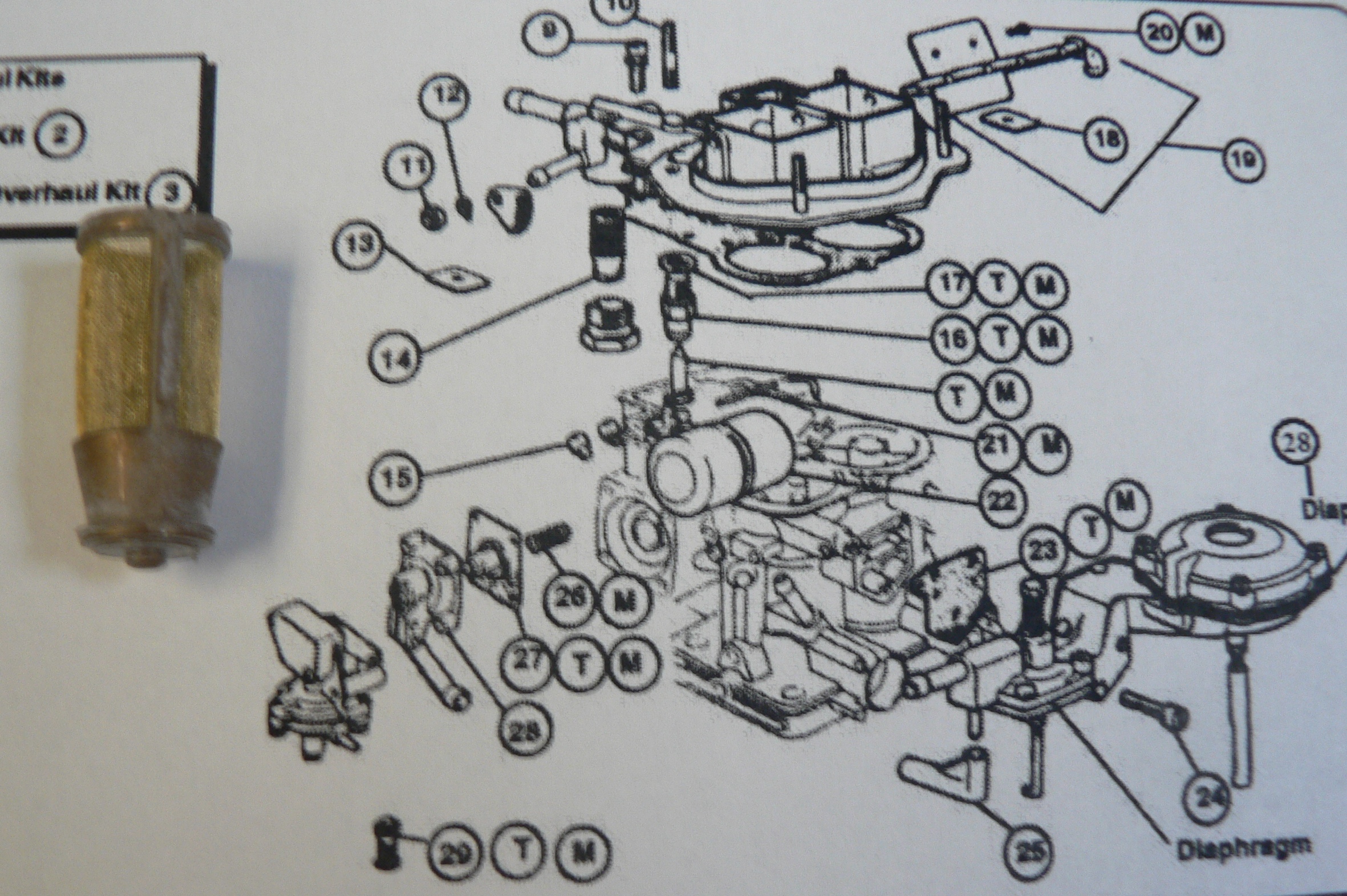

| 14 | 9941225 | STRAINER |
 |
$11.40 |
|
| 15 | 9905178 | JET 68-71 | $19.52 | ||
| 16 | 9906837 | SEAT-COMES IN 9921306 KIT | |||
| 17 | 9918712 | GASKET | $1.48 | ||
| 18 | 9915261 | PLATE | $1.95 | ||
| 19 | 9918711 | THROTTLE SHAFT | $16.32 | ||
| 20 | 9915990 | SCREW | $1.10 | ||
| 22 | 9916772 | FLOAT |
 |
$28.82 |
|
| 27 | 9916280 | DIAPHRAGM-COMES IN 9921306 KIT | |||
| 28 | 9936548 | VACUUM SECONDARY DIAPHRAGM | $44.24 |
|
|
| 49 | 9918741 | PUMP JET | $16.26 |
|
